Soft clustering with mixture models

  run this example as a notebook — or grab the .ipynb (also linked at the bottom of the page)

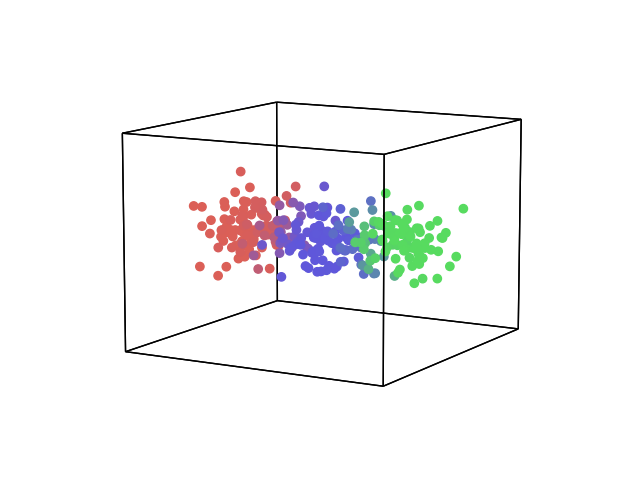

In addition to hard clustering (KMeans, HDBSCAN, …), hypertools 1.0 supports mixture models: GaussianMixture, BayesianGaussianMixture, LatentDirichletAllocation, and NMF. hyp.cluster returns an (n_samples, n_components) matrix of membership proportions instead of discrete labels, and hyp.plot colors each observation by blending the component colors according to its mixture weights – observations between clusters render with intermediate colors.

•
•

(300, 3) [[0.997 0.    0.003]
 [0.997 0.    0.003]]
/home/docs/checkouts/readthedocs.org/user_builds/hypertools/checkouts/latest/hypertools/plot/backend.py:1353: UserWarning: Failed to switch to any interactive backend (TkAgg, QtAgg, Qt5Agg, Qt4Agg, GTK4Agg, GTK3Agg, WXAgg). Falling back to 'Agg'.
  warnings.warn(BACKEND_WARNING)
/home/docs/checkouts/readthedocs.org/user_builds/hypertools/checkouts/latest/hypertools/plot/backend.py:1353: UserWarning: Failed to switch to any interactive backend (TkAgg, QtAgg, Qt5Agg, Qt4Agg, GTK4Agg, GTK3Agg, WXAgg). Falling back to 'Agg'.
  warnings.warn(BACKEND_WARNING)

# Code source: Contextual Dynamics Lab
# License: MIT

import numpy as np
import hypertools as hyp

# three OVERLAPPING gaussian blobs (1.5 sd apart) -- points in the overlap
# regions have genuinely mixed memberships, so their colors visibly blend
rng = np.random.default_rng(42)
data = np.vstack([rng.standard_normal((100, 5)) + 1.5 * i for i in range(3)])

# seed the mixture model so both plots below use the SAME fit: an unseeded
# GaussianMixture can return its components in a different order on each
# call, which would permute the colors between the two figures
gmm = {'model': 'GaussianMixture', 'kwargs': {'random_state': 0}}

# soft cluster assignments: rows sum to 1
proportions = hyp.cluster(data, cluster=gmm, n_clusters=3)
print(proportions.shape, proportions[:2].round(3))

# colors blend according to membership weights
hyp.plot(data, 'o', cluster=gmm, n_clusters=3)

# equivalently, pass any (n_samples, k) matrix as hue
hyp.plot(data, 'o', hue=proportions)
