A tour of hyp.load’s data sources

  run this example as a notebook — or grab the .ipynb (also linked at the bottom of the page)

hypertools.load resolves a plain string dataset name against several built-in and third-party sources, in order (GH #116, #273): built-in example datasets, scikit-learn’s bundled datasets, seaborn’s example datasets, FiveThirtyEight’s published datasets (explicit 'fivethirtyeight/<slug>' prefix), and Kaggle datasets (explicit 'kaggle/<owner>/<dataset>' prefix, downloaded anonymously via kagglehub – no Kaggle account or API key required). This example tours all four, loading one small dataset from each and plotting it.

sklearn: iris: (150, 5)
seaborn: penguins: (344, 7)
fivethirtyeight: bechdel: (1794, 15)
Downloading to /home/docs/.cache/kagglehub/datasets/uciml/iris/2.archive...

  0%|          | 0.00/3.60k [00:00<?, ?B/s]
100%|██████████| 3.60k/3.60k [00:00<00:00, 12.6MB/s]
Extracting files...
kaggle: uciml/iris: (150, 6)
/home/docs/checkouts/readthedocs.org/user_builds/hypertools/checkouts/latest/hypertools/plot/backend.py:1353: UserWarning: Failed to switch to any interactive backend (TkAgg, QtAgg, Qt5Agg, Qt4Agg, GTK4Agg, GTK3Agg, WXAgg). Falling back to 'Agg'.
  warnings.warn(BACKEND_WARNING)
/home/docs/checkouts/readthedocs.org/user_builds/hypertools/checkouts/latest/hypertools/plot/backend.py:1353: UserWarning: Failed to switch to any interactive backend (TkAgg, QtAgg, Qt5Agg, Qt4Agg, GTK4Agg, GTK3Agg, WXAgg). Falling back to 'Agg'.
  warnings.warn(BACKEND_WARNING)
/home/docs/checkouts/readthedocs.org/user_builds/hypertools/checkouts/latest/hypertools/plot/backend.py:1353: UserWarning: Failed to switch to any interactive backend (TkAgg, QtAgg, Qt5Agg, Qt4Agg, GTK4Agg, GTK3Agg, WXAgg). Falling back to 'Agg'.
  warnings.warn(BACKEND_WARNING)
/home/docs/checkouts/readthedocs.org/user_builds/hypertools/checkouts/latest/hypertools/plot/backend.py:1353: UserWarning: Failed to switch to any interactive backend (TkAgg, QtAgg, Qt5Agg, Qt4Agg, GTK4Agg, GTK3Agg, WXAgg). Falling back to 'Agg'.
  warnings.warn(BACKEND_WARNING)

# Code source: Contextual Dynamics Laboratory
# License: MIT

import matplotlib.pyplot as plt
import hypertools as hyp

# Three of these four sources (seaborn, FiveThirtyEight, Kaggle) fetch over
# the network at run time. So that a transient outage doesn't abort the whole
# documentation-gallery build, each load is attempted independently and a
# source that can't be reached is simply skipped (with a printed note); the
# grid is drawn from whichever sources succeeded. In normal interactive use
# you would just call ``hyp.load(name)`` directly, as the first line of each
# block below shows.
sources = [
    # (title, loader, optional numeric-only cleanup for plotting)
    ('sklearn: iris', lambda: hyp.load('iris'), None),
    ('seaborn: penguins', lambda: hyp.load('penguins'),
     lambda df: df.select_dtypes('number').dropna()),
    ('fivethirtyeight: bechdel', lambda: hyp.load('fivethirtyeight/bechdel'),
     lambda df: df.select_dtypes('number').dropna()),
    ('kaggle: uciml/iris', lambda: hyp.load('kaggle/uciml/iris'), None),
]

loaded = []
for title, loader, clean in sources:
    try:
        data = loader()
    except Exception as e:  # network/rate-limit/optional-dep hiccup
        print(f"{title}: skipped ({type(e).__name__}: {e})")
        continue
    print(f"{title}: {getattr(data, 'shape', 'loaded')}")
    loaded.append((title, data if clean is None else clean(data)))

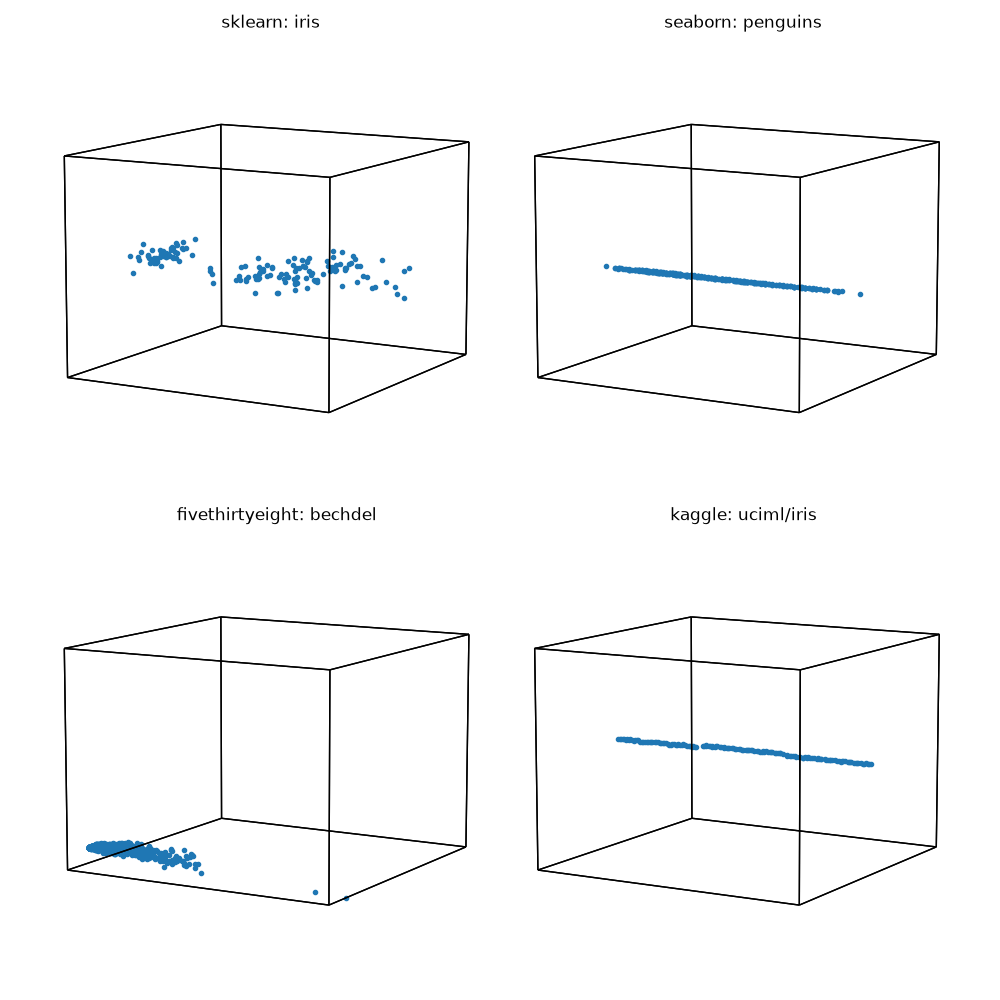

# plot each successfully loaded source side by side, colored/reduced
# automatically by hyp.plot. The rows of these tabular datasets are
# unordered samples, so each is drawn as points ('.') rather than as a
# connected line.
n = max(len(loaded), 1)
ncols = 2 if n > 1 else 1
nrows = (n + ncols - 1) // ncols
fig, axes = plt.subplots(nrows, ncols,
                         subplot_kw={'projection': '3d'},
                         figsize=(5 * ncols, 5 * nrows),
                         squeeze=False)
for ax in axes.flat:
    ax.set_axis_off()  # hide any unused panels
for (title, data), ax in zip(loaded, axes.flat):
    ax.set_axis_on()
    hyp.plot(data, '.', ax=ax, title=title)
plt.tight_layout()
